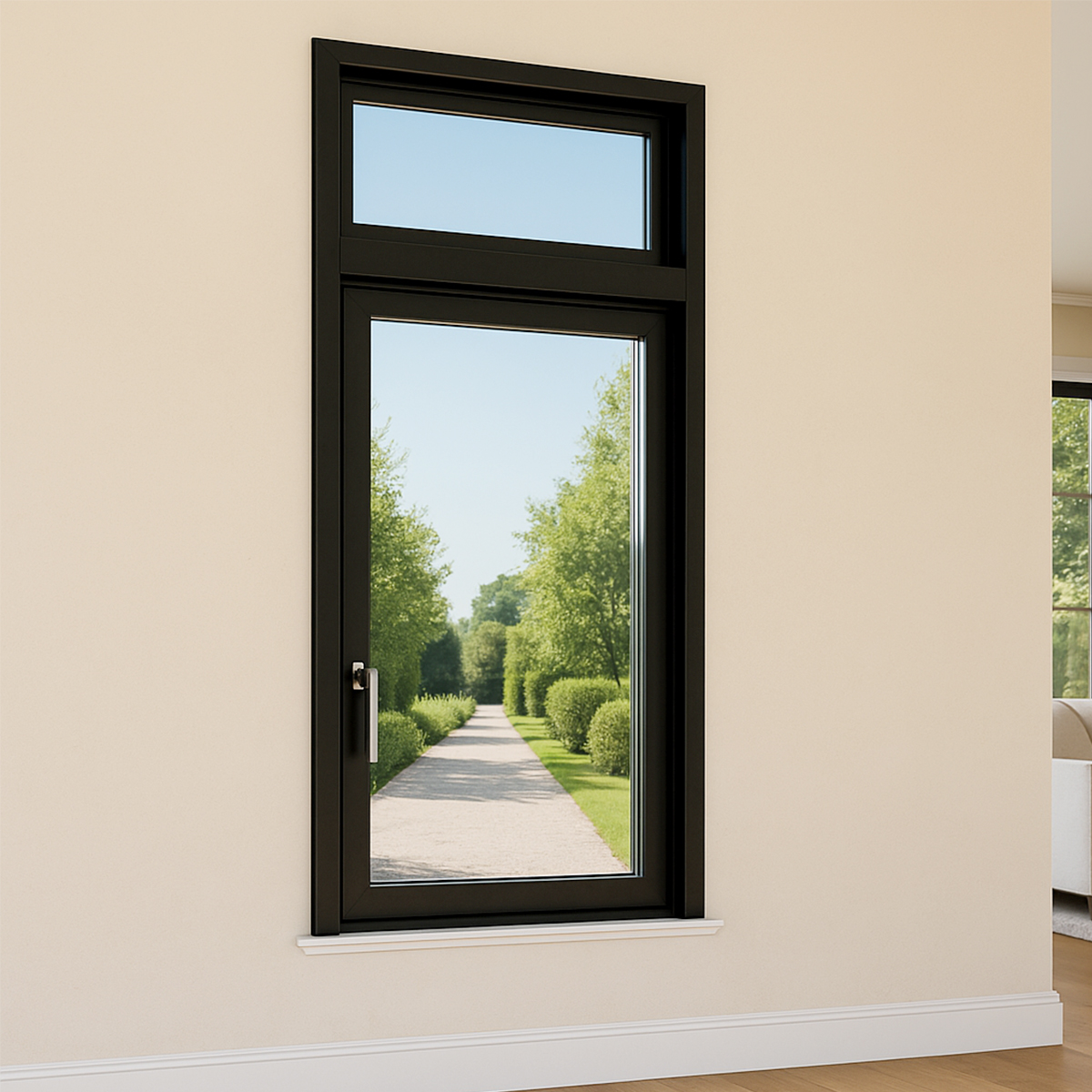

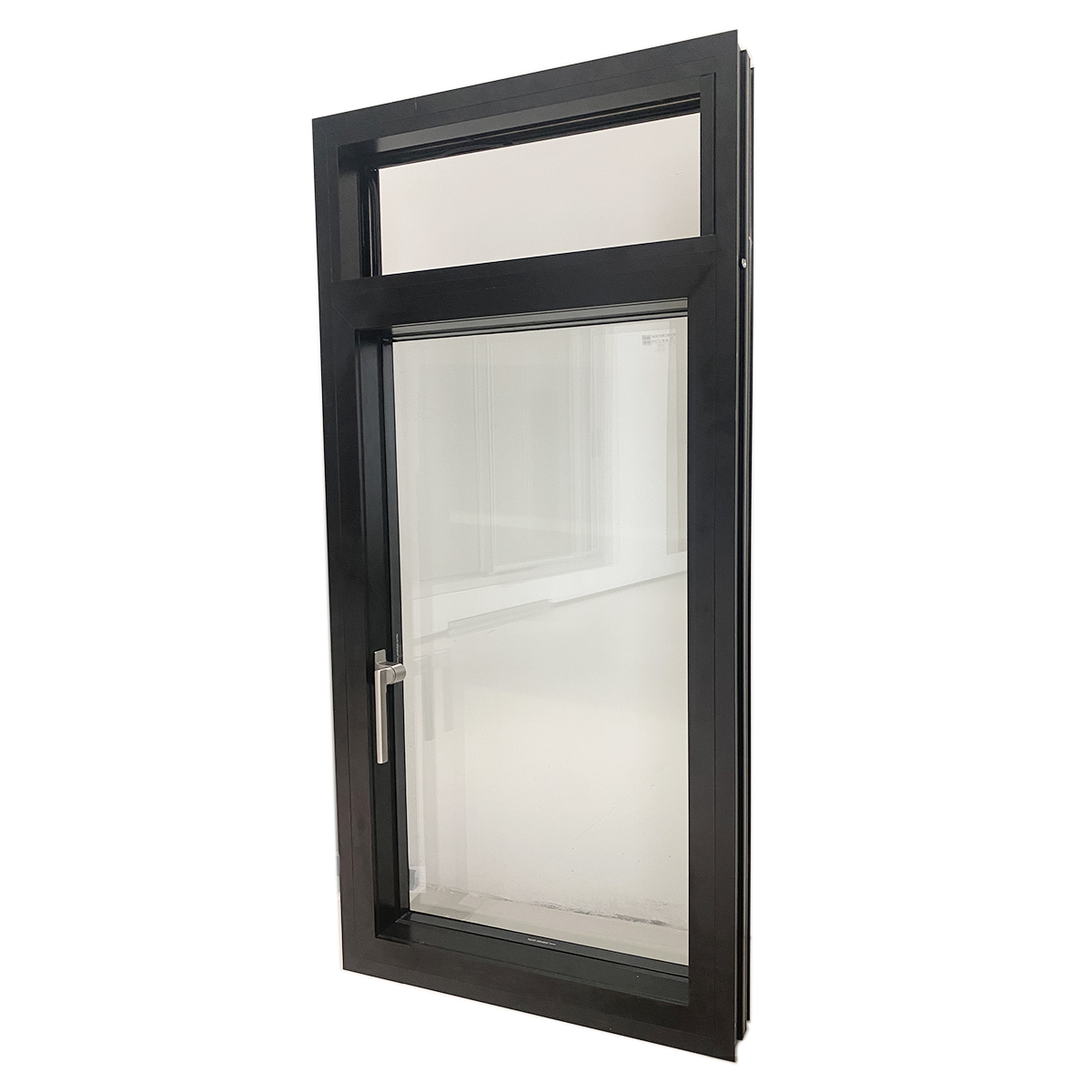

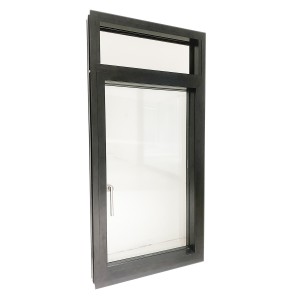

93 Series Casement Window
93 Series Casement Window
Its features include:
Core Materials & Construction
Aluminum Profile: 6063-T6 precision-grade alloy, offering high strength, corrosion resistance, and stability.
Thermal Break: PA66GF25 (Nylon 66 + 25% fiberglass), 20mm wide, effectively reducing heat transfer for enhanced insulation.
Glass Configuration: 5G+25A+5G (5mm tempered glass + 25mm air gap + 5mm tempered glass), providing superior thermal and acoustic performance.
Technical Performance
Thermal Insulation (U-Value)：Uw ≤ 1.7 W/(m²·K) (whole window)；Uf ≤ 1.9 W/(m²·K) (frame)Low thermal conductivity, meeting stringent energy-saving standards.
Sound Insulation (RW Value)：Sound reduction ≥ 42 dB, ideal for noisy urban environments.
Water Tightness (△P)：720 Pa, ensuring resistance to heavy rain and water infiltration.
Air Permeability (P1)：0.5 m³/(m·h), minimizing air leakage for improved energy efficiency.
Wind Load Resistance (P3)：4.5 kPa, suitable for high-rise buildings and extreme weather conditions.
Dimensions & Load Capacity
Max. Single Sash Dimensions: Height ≤ 1.8m；Width ≤ 2.4m
Max. Sash Weight Capacity: 80kg, ensuring stability for large-sized windows.
Flush Frame-Sash Design: Sleek aesthetics, compatible with contemporary architecture.
Application
High-rise Residential Buildings
The 93 Series Casement Window is ideal for high-rise apartments with its 4.5kPa wind load resistance ensuring structural safety in elevated positions. Its 42dB sound insulation effectively blocks urban noise pollution, while the 1.7W/(m²·K) U-value enhances thermal comfort, making it perfect for modern high-rise living spaces.
Cold Climate Regions
Specially designed for frigid environments, the window features 20mm PA66GF25 thermal breaks and 5G+25A+5G insulated glass units. With Uw≤1.7 and air permeability of 0.5m³/(m·h), it provides exceptional thermal retention, making it particularly suitable for Scandinavian countries, Canada, and other cold regions.
Coastal/Tropical Areas
Constructed with corrosion-resistant 6063-T6 aluminum and boasting 720Pa water tightness, these windows withstand harsh marine environments and tropical storms. The 4.5kPa wind pressure resistance ensures durability, making them excellent for beachfront properties and tropical resorts.
Urban Commercial Spaces
Featuring a sleek flush frame-sash design and accommodating large 1.8m×2.4m panels with 80kg load capacity, these windows combine aesthetics with functionality for modern office buildings, retail spaces, and commercial centers requiring expansive glazing solutions.
Noise-Sensitive Environments
With sound reduction ratings ≥42dB, the windows effectively filter traffic and aircraft noise, providing optimal acoustic performance for hospitals, educational institutions, recording studios, and other facilities requiring quiet environments.
Model Overview
|
Project Type |
Maintenance Level |
Warranty |
|
New construction and replacement |
Moderate |
15 Year Warranty |
|
Colors& Finishes |
Screen & Trim |
Frame Options |
|
12 Exterior Colors |
No |
Block Frame/Replacement |
|
Glass |
Hardware |
Materials |
|
Energy efficient, tinted, textured |

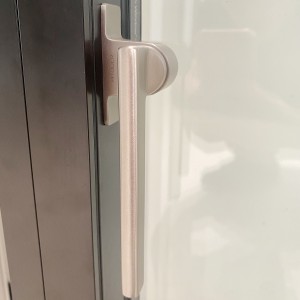

2 Handle Options in 10 finishes |
Aluminum, Glass |
To get an estimate
Many options will influence the price of your window and door , so contact us for more details.
|
U-Factor |
Base on the Shop drawing |
SHGC |
Base on the Shop drawing |
|
VT |
Base on the Shop drawing |
CR |
Base on the Shop drawing |
|
Uniform Load
|
Base on the Shop drawing |
Water Drainage Pressure |
Base on the Shop drawing |
|
Air Leakage Rate |
Base on the Shop drawing |
Sound Transmission Class (STC) |
Base on the Shop drawing |
