47 Series Ultra-Slim Window Wall for Modern Architecture
47 Series Ultra-Slim Window Wall for Modern Architecture
Its features include:
Ultra-Slim Profile for Maximum Views
With a visible frame width of just 47mm, 47 Series offers a nearly invisible boundary between indoors and outdoors, allowing expansive glazing areas that maximize natural light and visual openness.
Fully Integrated Façade System
Compatible with operable windows, fixed panels, hinged doors, and sliding systems, the 47 Series framework provides a seamless and unified façade solution for diverse architectural needs.
Concealed Drainage and Minimalist Detailing
Built-in drainage channels and hidden hardware grooves ensure a clean, uninterrupted aesthetic—perfect for modern minimalist architecture.
Durable and Low Maintenance
The high-grade aluminum frames are finished with anodizing, powder coating, or fluorocarbon treatments, offering exceptional resistance to corrosion, fading, and aging—ideal for long-term, low-maintenance performance in all climates.
Robust Structure with Energy Efficiency
Featuring multi-chamber aluminum profiles for enhanced wind resistance and structural rigidity, 47 Series supports double or triple glazing, Low-E coatings, and argon-filled units for superior thermal and acoustic insulation.
Application

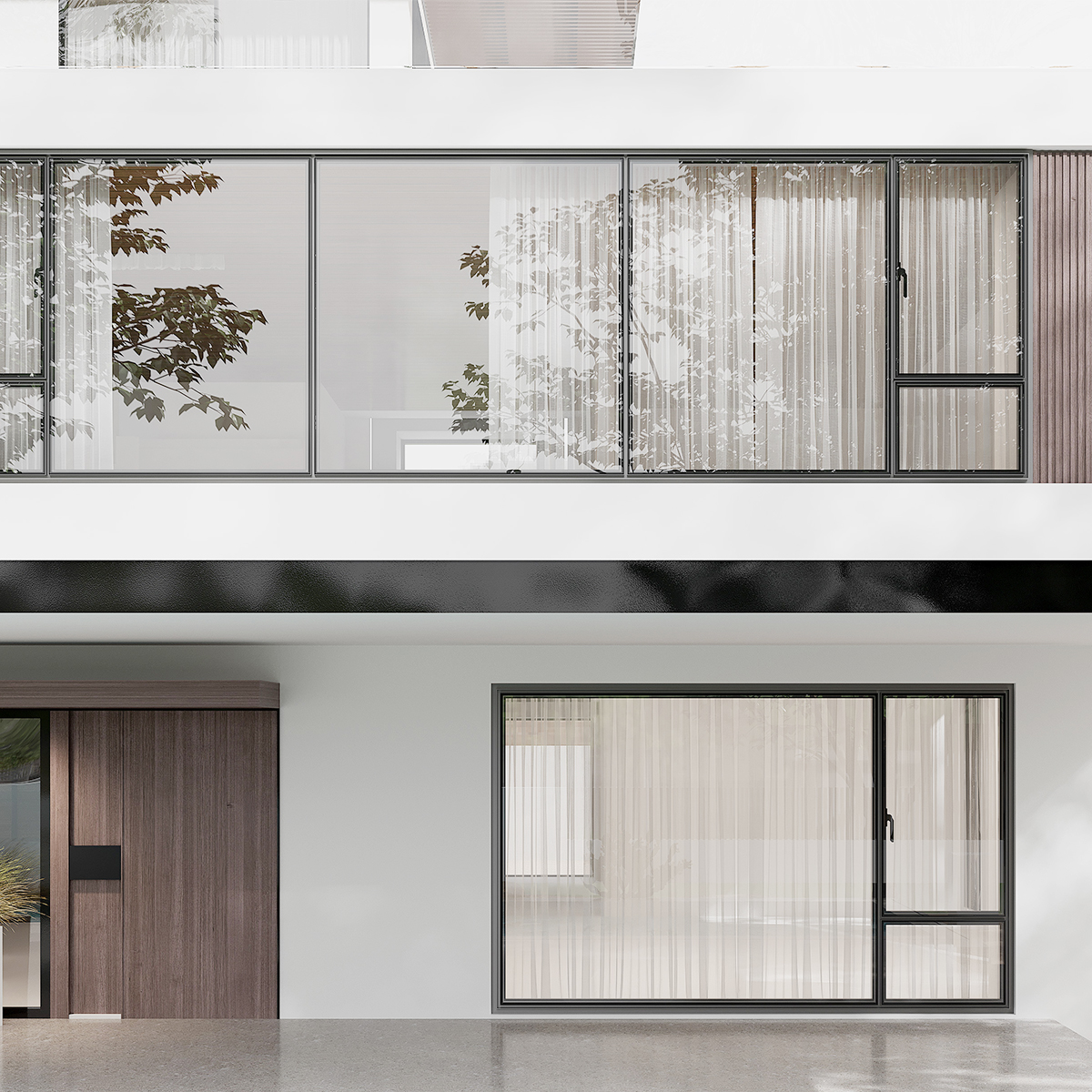

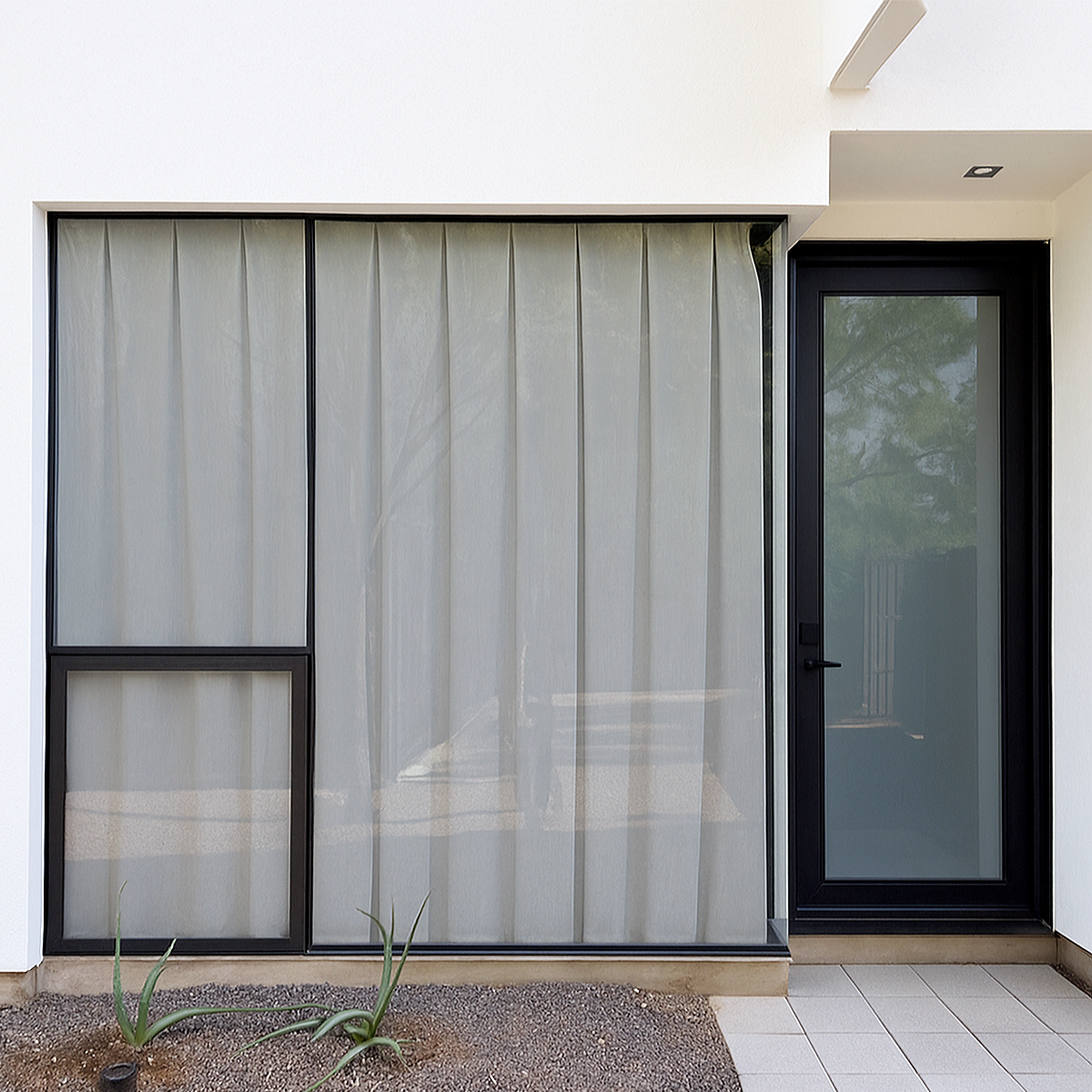

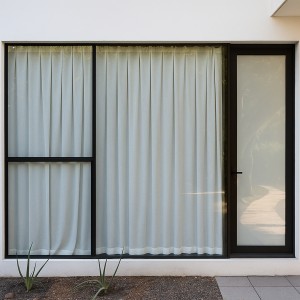

High-End Residential Façades
Perfect for villas, luxury apartments, and premium homes, offering a sleek, minimalist aesthetic with maximum daylight.
Urban Apartments & High-Rise Buildings
Designed to withstand high wind loads, TP47 is ideal for balcony enclosures, floor-to-ceiling windows, and curtain wall systems in tall buildings.
Boutique Hotels & Resorts
Enhances architectural elegance and guest comfort with excellent thermal and acoustic insulation, ideal for hospitality environments.
Commercial Offices & Corporate Headquarters
Combines modern design with performance, optimizing indoor light quality and energy efficiency for professional spaces.
Exhibition Centers, Art Galleries & Cultural Venues
Supports large-format glazing to create open, light-filled environments with clean, uninterrupted sightlines.
Premium Retail Stores & Flagship Showrooms
Slim frames and expansive glass elevate storefront design, maximizing visual impact and product visibility.
Model Overview
|
Project Type |
Maintenance Level |
Warranty |
|
New construction and replacement |
Moderate |
15 Year Warranty |
|
Colors& Finishes |
Screen & Trim |
Frame Options |
|
12 Exterior Colors |
No |
Block Frame/Replacement |
|
Glass |
Hardware |
Materials |
|
Energy efficient, tinted, textured |
2 Handle Options in 10 finishes |
Aluminum, Glass |
To get an estimate
Many options will influence the price of your window and door , so contact us for more details.
|
U-Factor |
Base on the Shop drawing |
SHGC |
Base on the Shop drawing |
|
VT |
Base on the Shop drawing |
CR |
Base on the Shop drawing |
|
Uniform Load
|
Base on the Shop drawing |
Water Drainage Pressure |
Base on the Shop drawing |
|
Air Leakage Rate |
Base on the Shop drawing |
Sound Transmission Class (STC) |
Base on the Shop drawing |
