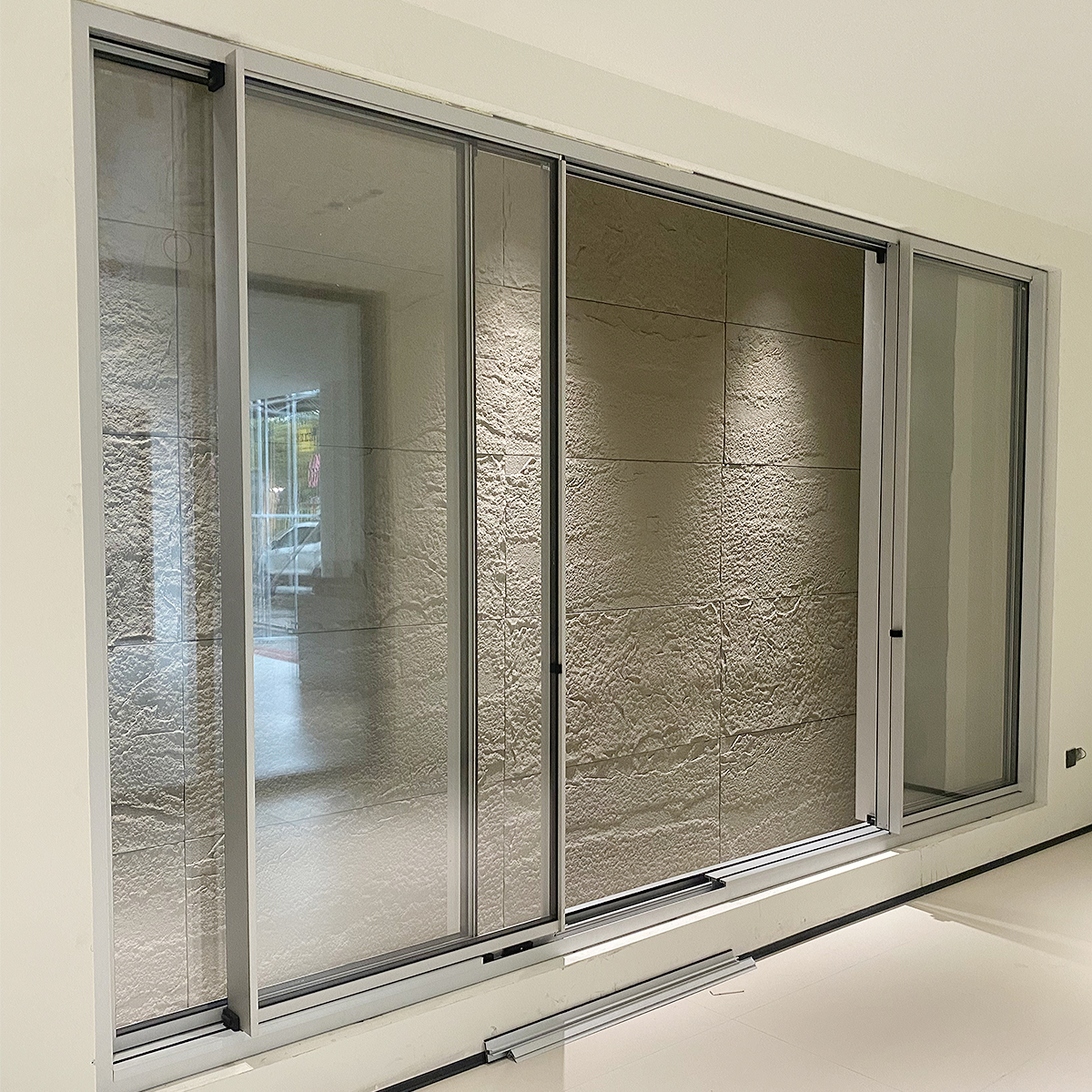

36-20 Series Quick-Change Roller Sliding Door System
36-20 Series Quick-Change Roller Sliding Door System
Its features include:
Materials & Construction
Aluminum Profile: Made of high-strength 6063-T6 aluminum alloy
Thermal Break Strip: Equipped with PA66GF25 (25% glass fiber reinforced nylon), 20mm wide
Glass Configuration: 6G + 24A + 6G (double-glazed tempered glass)
Sealing Materials:
Primary seal: EPDM (ethylene propylene diene monomer) rubber
Secondary seal: Non-woven weatherstripping brush
Thermal & Acoustic Performance
Thermal Insulation: Uw ≤ 1.6 W/㎡·K; Uf ≤ 1.9 W/㎡·K
Sound Insulation: RW (To Rm) ≥ 38 dB
Water Tightness:Pressure resistance up to 720 Pa
Wind Load Resistance: Rated at 5.0 kPa (P3 level)
Dimensional & Load Capacity
Maximum Sash Height: 6 meters
Maximum Sash Width: 6 meters
Maximum Load per Sash: 1000 kg
Functional Configurations
Supports a wide range of applications and flexible opening types:

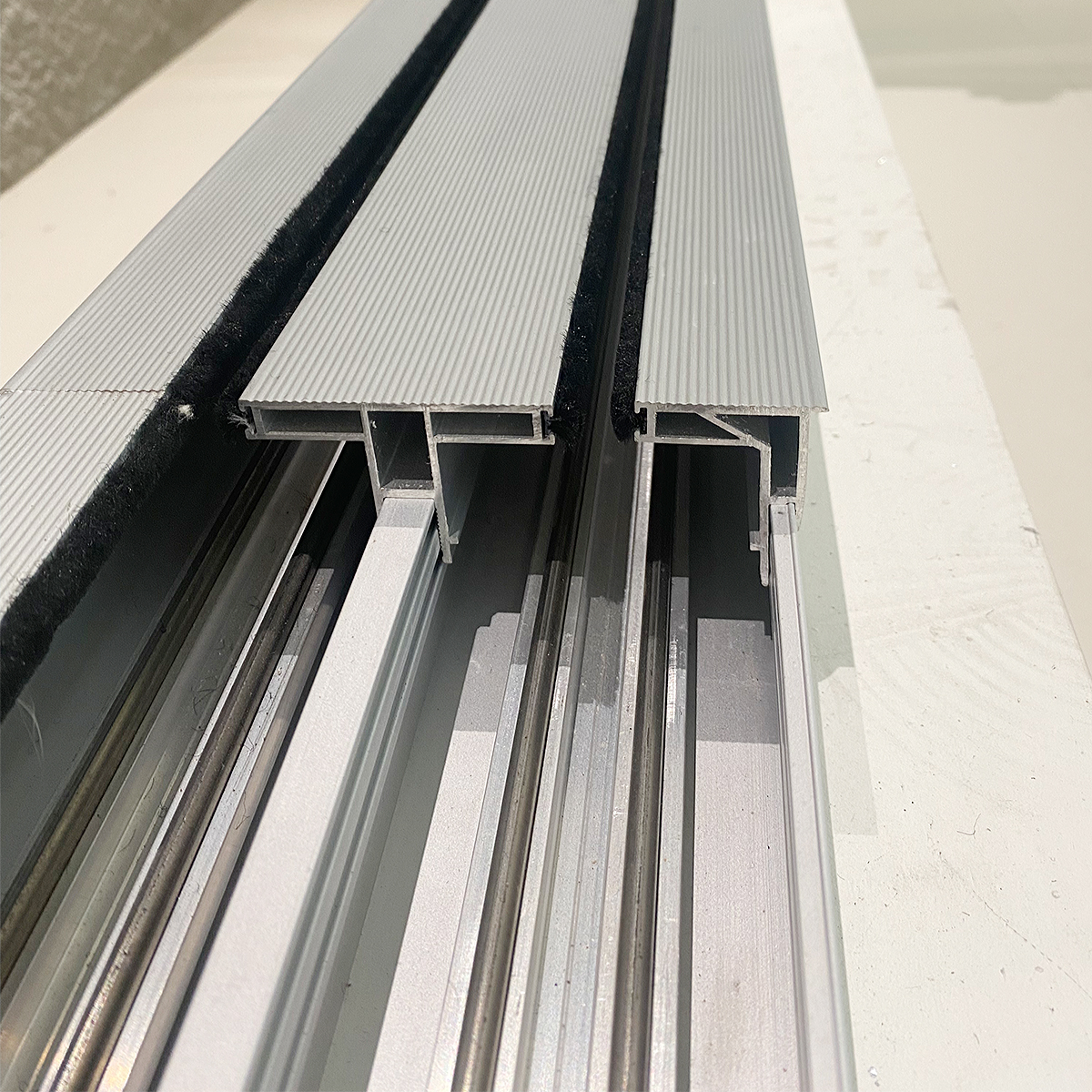

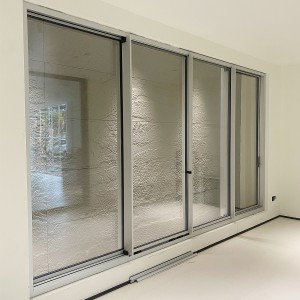

Track Options: Single-track to six-track manual systems
Opening Types: Single-panel to multi-panel motorized operation, Three-track with integrated screen, Bi-parting (double-sided opening), Wide-angle opening between 72° to 120°
Maintenance Advantage

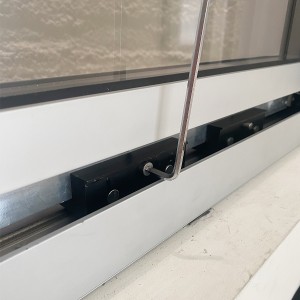

Quick roller replacement system dramatically reduces maintenance time
No door removal required, making the system ideal for commercial or high-usage environments
Application
Luxury Villas
Ideal for expansive openings between living rooms and gardens or pools. The system supports large panels (up to 6m high and 1000kg), creating a seamless indoor-outdoor transition with excellent thermal insulation for year-round comfort.
Hotels & Resorts
Used in guest rooms and lobbies where quiet operation and elegant design are essential. The quick-change roller feature allows efficient maintenance with minimal disturbance in high-occupancy environments.
Retail & Hospitality Entrances
Ideal for premium storefronts and restaurant facades requiring smooth sliding, thermal efficiency (Uw ≤ 1.6), and easy maintenance. Enhances customer experience with clear views and barrier-free access.
High-Rise Apartments
Perfect for balcony or terrace doors exposed to strong winds and noise. With a wind pressure resistance of 5.0 kPa and RW ≥ 38 dB, it ensures both structural safety and acoustic comfort at elevated heights.
Commercial Offices & Showrooms
Suitable for space dividers or external glass façades. Multiple track options and wide-angle openings (72°–120°) support flexible layouts and high foot traffic, while maintaining a sleek, professional appearance.
Model Overview
|
Project Type |
Maintenance Level |
Warranty |
|
New construction and replacement |
Moderate |
15 Year Warranty |
|
Colors& Finishes |
Screen & Trim |
Frame Options |
|
12 Exterior Colors |
No |
Block Frame/Replacement |
|
Glass |
Hardware |
Materials |
|
Energy efficient, tinted, textured |
2 Handle Options in 10 finishes |
Aluminum, Glass |
To get an estimate
Many options will influence the price of your window and door , so contact us for more details.
|
U-Factor |
Base on the Shop drawing |
SHGC |
Base on the Shop drawing |
|
VT |
Base on the Shop drawing |
CR |
Base on the Shop drawing |
|
Uniform Load
|
Base on the Shop drawing |
Water Drainage Pressure |
Base on the Shop drawing |
|
Air Leakage Rate |
Base on the Shop drawing |
Sound Transmission Class (STC) |
Base on the Shop drawing |
